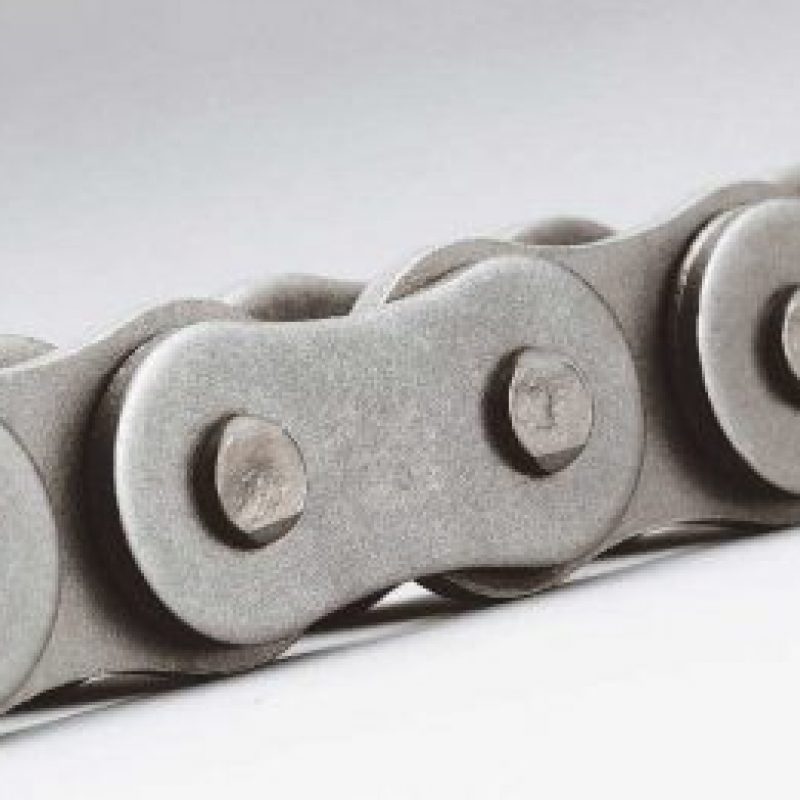

SH系列滚子链通过销轴整体淬硬其极限拉伸载荷比A系列标准滚子链增加约25%-35%
并能提供较高的抗震动负载，参数尺寸与重载系列滚子链相同。
| 链号 | 节距 Pich | 滚子直径 Roller Diam eter | 内节内宽 Widath Between innerplates | 销轴直径 Pin diameter | 销轴长度 Pin length | 销轴长度 Pin length | 内链板高度 Inner Plate depth | 链板厚度 Plate thickness | 极限拉伸载荷 Average Thensile strength | 平均拉伸载荷 Average Tensile strength | 每米长重 Weight Per meter |
| p | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Pt | Qo | Q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/LB | kn | kg/m | |
| *25SH | 6.350 | 3.30 | 3.18 | 2.31 | 9.0 | - | 6.00 | 1.04 | 5.09/1157 | 5.6 | 0.11 |
| *35SH | 9.525 | 5.08 | 4.77 | 3.58 | 13.3 | 14.3 | 9.00 | 1.50 | 11.00/2500 | 13.6 | 0.41 |
| 40SH | 12.700 | 7.95 | 7.85 | 3.96 | 18.8 | 19.9 | 12.00 | 2.03 | 22.40*5091 | 24.8 | 0.82 |
| 50SH | 15.875 | 10.16 | 9.4 | 5.08 | 22.1 | 23.4 | 15.09 | 2.42 | 30.40/6909 | 36.2 | 1.25 |
| 60SH | 19.050 | 11.91 | 12.57 | 5.94 | 29.2 | 31.6 | 18.00 | 3.25 | 44.10/10023 | 50.4 | 1.87 |
| 80SH | 25.400 | 15.88 | 15.75 | 7.92 | 36.2 | 37.7 | 24 | 4 | 88.20/20045 | 93.0 | 3.10 |
| 100SH | 31.750 | 19.05 | 18.90 | 9.53 | 43.6 | 46.9 | 30.00 | 4.80 | 116.60/26500 | 129.1 | 4.52 |
| 120SH | 38.100 | 22.23 | 25.22 | 11.10 | 53.5 | 57.5 | 35.7 | 5.60 | 158.20/35954 | 175.3 | 6.60 |
| 140SH | 44.450 | 25.40 | 25.22 | 12.70 | 57.6 | 62.2 | 41.00 | 6.40 | 206.00/46818 | 266.5 | 8.30 |
| 160SH | 50.800 | 28.58 | 31.55 | 14.27 | 68.2 | 73.0 | 47.80 | 7.2 | 274.00/62273 | 293.0 | 10.3 |
| 200SH | 63.500 | 39.68 | 37.85 | 19.85 | 86.6 | 93.5 | 60.00 | 9.5 | 506.10/115023 | 562.3 | 19.16 |
| #5H63 | 19.050 | 14.29 | 9.55 | 7.30 | 27.9 | - | 19.60 | 4.15/3.25 | 65.70/14932 | 73.0 | 2.62 |
| #C70SH | 22.225 | 15.60 | 14.30 | 7.94 | 36.6 | - | 22.60 | 4.8/4.0 | 88.25/20056 | 98.0 | 3.75 |
| 955 | 28.575 | 21.30 | 17.46 | 11.10 | 46.8 | - | 30.60 | 6.4/5.6 | 142.10/35635 | 156.8 | 7.95 |
