B系列直板滚子链条
  • 链条介绍
  • 链条参数

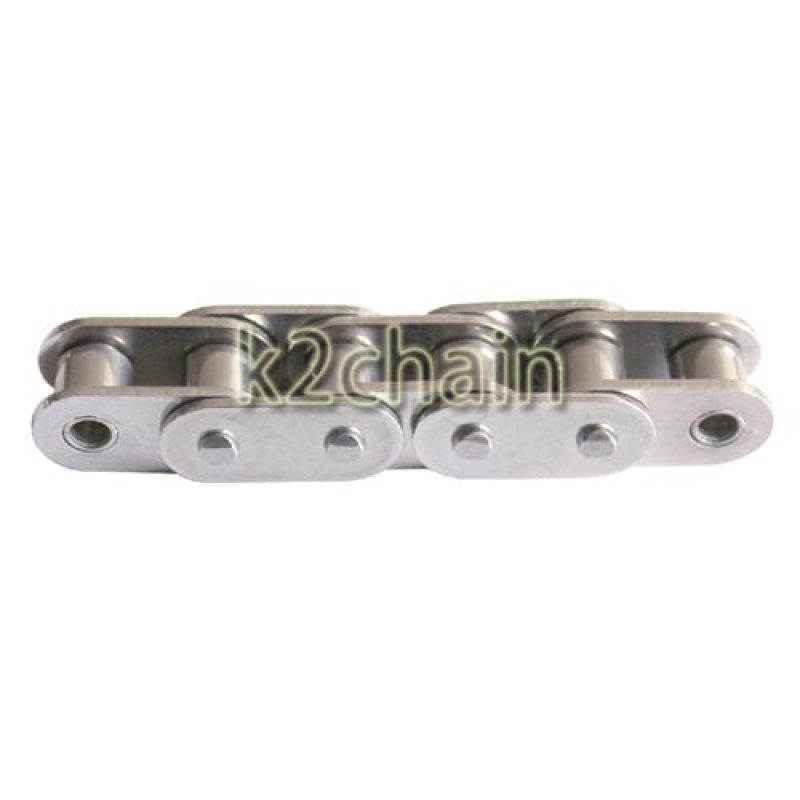

B系列直板滚子链条将传动滚子链条的链板变更了直板形,直接将工件承载于链板之上进行输送的链条。

特点·注意事项

由于链条的链板形状为直板形,直接将工件承载于链板之上进行输送的链条。

材质:不锈钢、碳钢。

链轮可使用标准滚子链轮。

DIN/ISO链号节距滚子直径内节内宽销轴直径销轴长度销轴长度内链板高度链板厚度排距极限拉伸载荷平均拉伸载荷每米长重
pd1 maxb1 minD maxL maxLc maxh2 maxt/T maxPtQ minQ0q
mmmmmmmmmmmmmmmmmmkN/LBkNkg/m
C08B-112.78.517.754.4516.718.211.81.6018/409119.50.80
C10B-115.87510.169.655.0819.520.914.71.7022.4/509.27.91.06
C12B-119.0512.07’1.1.685.7222.525.216.01.8529/59132.21.32
C16B-125.415.8817.028.2836.139.121.0/24.04.15/3.160/1363672.83.08/3.49
C20B-131.7519.0519.5610.1941.34526.44.5/3.595/21591106.74.16
C24B-138.125.4025.4014.6353.457.833.26.0/4.8160/36364178.07.47
C28B-144.45027.9430.9915.9065.169.536.77.5/6200/45455222.09.90
C32B-150.829.2130.9917.8166.071427/6250/56818277.510.45
C08B-212.78.517.754.4531.232.211.81.613.9232/727338.71.45
C10B-215.87510.169.655.0836.137.514.71.716.5944.5/1011457.82
C12B-219.0512.0711.685.7242.044.716.01.8519.4657.8/1313666.12.62
C16B-225.415.8817.028.2868.071.021.0/24.04.15/3.131.88106/240911336.1/6.92
C20B-231.7519.0519.5610.1977.881.526.44.5/3.536.45170/38636211.28.23
C24B-238.125.4025.4014.63101.7106.233.26/4.848.36280/63636319.214.77
C28B-244.4527.9430.9915.90124.6129.136.77.5/659.56360/81818406.819.82
C32B-350.829.2130.9917-81124.6129.642.07/658.55450/102273508.520.94
C08B-312.78.517.754.4545.146.111.81.613.9247.5/1079557.82.1
C10B-315.87510.169.655.0852.754.114.71.716.5966.7/1515984.52.87
C12B-319.0512.0711.685.7261.564.216.01.8519.4686.7/19705101.83.89
C16B-325.415.8817.028.2899.8102.921/244.15/3.131.88160/36364203.79.12/10.34
C20B-331.7519.0519.5610.19114.2117.926.44.5/3.536.45250/5681829011.34
C24B-338.125.4025.4014.63150.1154.633.26/4.848.36425/9659149322.10
C28B-344.4527.9430.9915.90184.2188.736.77.5/659.56530/120454609.529.64
C32B-350.829.2130.9917.81183.2188.242.07/658.55670/152273770.531.27
