SP系列高强度短节距滚子链
  • SP系列高强度短节距滚子链
  • SP系列高强度短节距滚子链

  • 链条介绍
  • 链条参数

SP系列高强度滚子链通过对结构尺寸、零件材料和热处理加工的整体优化设计,

其极限拉伸载荷比A系列标准滚子链增加约28%以上,具备优良的疲劳强度和抗冲击性能。

链号 节距 滚子直径 内节内宽 销轴直径 销轴长度 销轴长度 内链板高度 链板厚度 排距 极限拉伸载荷 平均拉伸载荷 每米长重
p d1 max b1 min d2 max L max Lc max h2 max T max Pt Q min Qo q
mm mm mm mm mm mm mm mm mm kN/LB KN kg/m
80SP-1 25.40 15.88 15.75 7.94 32.7 36.5 24.1 3.2 - 77.5/17434 85.3 2.86
100SP-1 31.75 19.05 18.95 9.54 40.4 44.7 30.1 4.0 - 115.5/25982 127.0 4.21
120SP-1 38.10 22.23 25.22 11.11 50.3 54.3 36.2 4.8 - 165.0/37118 186.0 6.36
140SP-1 44.45 25.40 25.22 12.71 54.4 59.0 42.2 5.6 - 222.7/50098 245.0 8.04
160SP-1 50.80 28.58 31.55 14.29 64.8 69.6 48.2 6.4 - 285.5/64215 314 10.8
200SP-1 63.50 39.68 37.85 19.85 80.3 87.2 60.3 8.0 - 445.5/100208 490.0 18.00
80SP-2 25.4 15.88 15.75 7.94 62.7 65.8 24.1 3.2 29.29 155.0/34868 170.6 5.68
100SP-2 31.75 19.05 18.95 9.54 76.4 80.5 30.1 4.0 35.76 231.0/51965 255.0 8.34
120SP-2 38.10 22.23 25.22 11.11 95.8 99.7 36.2 4.8 45.44 339.0/76260 373.0 1263
140SP-2 44.45 25.40 25.22 12.71 103.3 107.9 42.2 5.6 48.87 445.5/100218 490.0 15.92
160SP-2 50.80 28.58 31.55 14.29 123.3 128.1 48.2 6.4 58.55 571.0/128430 628.0 21.43
200SP-2 63.50 39.68 37.85 19.85 151.9 158.8 60.3 8.0 71.55 892.0/200621 981.0 35
80SP-3 25.40 15.88 15.75 7.94 91.7 95.1 24.1 3.2 29.29 232.5/52302 255.9 8.18
100SP-3 31.75 19.05 18.95 9.54 112.2 116.3 30.1 4.0 35.76 347.3/78128 382.0 12.47
120SP-3 38.10 22.23 25.22 11.11 141.4 145.2 36.2 4.8 45.44 508.0/114278 559.0 18.90
140SP-3 44.45 25.40 25.22 12.71 152.2 156.8 42.2 5.6 48.87 668.1/150271 735.0 23.84
160SP-3 50.80 28.58 31.55 14.29 181.8 186.6 48.2 6.4 58.55 855.5/192441 941.0 32.10
200SP-3 63.5 39.68 37.85 19.85 223.5 230.4 60.4 8.0 71.55 1336.4/300633 1470.0 52.50

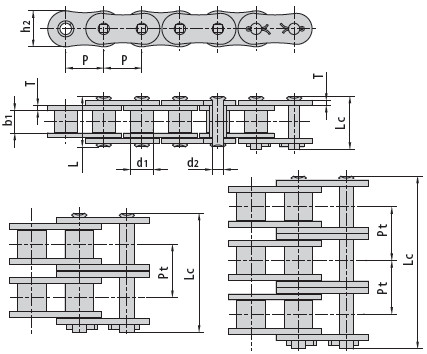

SP系列高强度短节距滚子链参数

SP系列高强度短节距滚子链

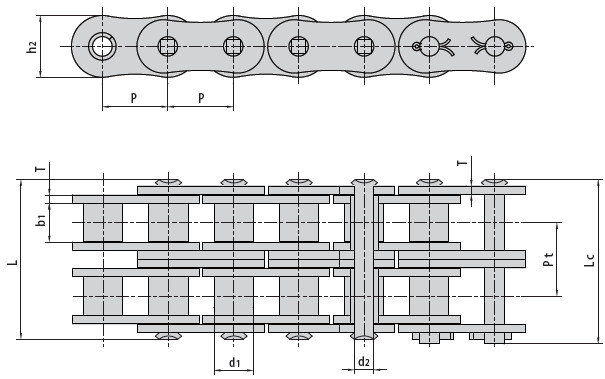

链号 节距 滚子直径 内节内宽 销轴直径 销轴长度 销轴长度 内链板高度 链板厚度 排距 极限拉伸载荷 平均拉伸载荷 每米长重
p d1 max b1 min d2 max L max Lc max h2 max T max Pt Q min Qo q
mm mm mm mm mm mm mm mm mm kN/LB KN kg/m
80SPE-2 25.40 15.88 15.75 7.94 62.7 65.8 24.1 3.2 29.29 155.0/34868 170.6 5.68
100SPE-2 31.75 19.05 18.95 9.54 76.4 80.5 30.1 4.0 35.76 231.0/51965 255.0 8.34
120SPE-2 38.10 22.23 25.22 11.11 95.8 99.7 36.2 4.8 45.44 339.0/76260 373.0 12.63
140SPE-2 44.45 25.40 25.22 12.71 103.3 107.9 42.2 5.6 48.87 445.5/100218 490.0 15.92
160SPE-2 50.80 28.58 31.55 14.29 123.3 128.1 48.2 6.4 58.55 571.0/128430 628 21.43
200SPE-2 63.50 39.68 37.85 19.85 151.9 158.8 60.3 8 71.55 892.0/200621 981.0 35.00
80HSPE-2 25.40 15.88 15.75 7.94 68.8 72.0 24.1 4.0 32.59 178.4/40132 196.2 6.65
100HSPE-2 31.75 19.05 18.95 9.54 82.7 86.0 30.1 4.8 39.09 263.6/59299 290.0 9.71
120HSPE-2 38.10 22.23 25.22 11.11 102.4 106.4 36.2 5.6 48.87 356.4/80175 392.0 14.12
140HSPE-2 44.45 25.40 25.22 12.71 109.8 114.4 42.2 6.4 52.20 463.6/104300 510.0 17.38
160HSPE-2 50.80 28.58 31.55 14.29 130.1 134.9 48.2 7.2 61.90 588.0/132275 647.0 23.00
200HSPE-2 63.5 39.68 37.85 19.85 164.9 171.8 60.3 9.5 78.31 1091.0/245429 1200.0 38.50

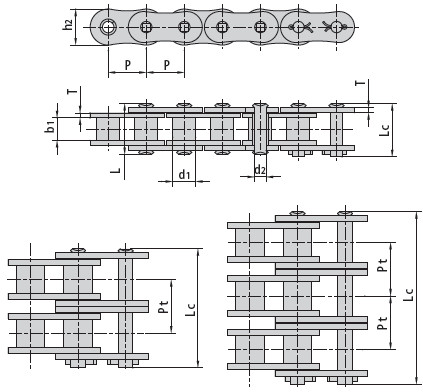

SP系列高强度短节距滚子链

链号 节距 滚子直径 内节内宽 销轴直径 销轴长度 销轴长度 内链板高度 链板厚度 排距 极限拉伸载荷 平均拉伸载荷 每米长重
p d1 max b1 min d2 max L max Lc max h2 max T max Pt Q min Qo q
mm mm mm mm mm mm mm mm mm kN/LB KN kg/m
80HSP-1 25.40 15.88 15.75 7.94 36.2 38.9 24.1 4.0 - 89.2/20066 98.1 3.36
100HSP-1 31.75 19.05 18.95 9.54 43.6 46.9 30.1 4.8 - 131.8/29649 145.0 4.90
120HSP-1 38.10 22.23 25.22 11.11 52.5 57.5 36.2 5.6 - 176.0/39592 196.0 7.12
140HSP-1 44.45 25.40 25.22 12.71 57.6 62.2 42.2 6.4 - 231.9/52149 255.0 8.88
160HSP-1 50.80 28.58 31.55 14.29 68.2 73.0 48.2 7.2 - 294.5/66260 324.0 11.72
200HSP-1 63.50 39.68 37.85 19.85 86.6 93.5 60.5 9.5 - 543.6/122295 598.0 19.80
80HSP-2 25.40 15.88 15.75 7.94 68.8 72.0 24.1 4.0 32.59 178.4/40132 196.2 6.65
100HSP-2 31.75 19.05 18.95 9.54 82.7 96.0 30.1 4.8 39.09 263.6/59299 290.0 9.71
120HSP-2 38.10 22.23 25.22 11.11 102.4 106.4 36.2 5.6 48.87 356.4/80175 392.0 14.12
140HSP-2 44.45 25.40 25.22 12.71 109.8 114.4 42.2 6.4 52.20 4636.6/104300 510.0 17.38
160HSP-2 50.80 28.58 31.55 14.29 130.1 134.9 48.2 7.2 61.90 588.0/132275 647.0 23.00
200HSP-2 63.50 39.68 37.85 19.85 164.9 171.8 60.3 9.5 78.31 1091.0/245429 1200.0 38.50
80HSP-3 25.40 15.88 15.75 7.94 101.4 104.6 24.1 4.0 32.59 267.6/60200 294.3 9.95
100HSP-3 31.75 19.05 18.95 9.54 121.8 125.1 30.1 4.8 39.09 395.4/88948 435.0 14.53
120HSP-3 38.10 22.23 25.22 11.11 151.2 155.2 36.2 5.6 48.87 534.5/120250 588.0 21.12
140HSP-3 44.45 25.40 25.22 12.71 162.0 166.6 42.2 6.4 52.20 695.5/156448 765.0 25.88
160HSP-3 50.80 28.58 31.55 14.29 192.0 196.8 48.2 7.2 61.90 882.7/198576 971.0 34.22
200HSP-3 63.50 39.68 37.85 19.85 243.2 250.1 60.3 9.5 79.31 1627.3/366073 1790.0 57.29
