短节距单孔折弯板特殊附件
  • 短节距单孔折弯板特殊附件
  • 短节距单孔折弯板特殊附件
  • 短节距单孔折弯板特殊附件

  • 链条附件介绍

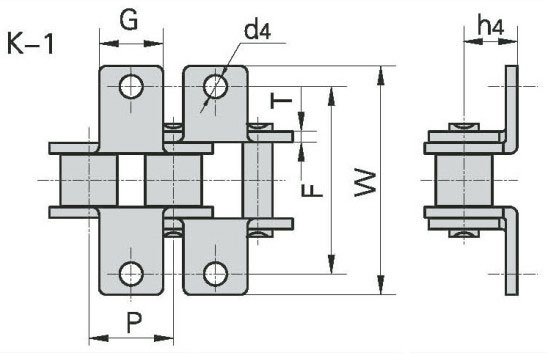

  • 链条附件尺寸

滚子链(传动用)型的链板上安装了A1或K1附件的链条。

链条节距较小,较小零部件可用小节距链输送,适用于较短距离的输送。

高速、顺畅、静音地运行。

可使用传动滚子链轮

链号 P G F W T h4 d4
Chain No. mm mm mm mm mm mm mm
25K1F1 6.350 5.60 14.27 21.38 0.80 4.75 3.40
*06BK1F3 9.525 8.00 18.81 26.81 1.15 6.50 3.50
08AA1F1 12.700 9.50 38.50 44.50 1.50 8.20 3.60
08AA1F2 12.700 9.50 25.40 35.20 1.50 7.90 4.85
08AA1F3 12.700 15.88 25_40 35.60 1.50 8.00 4.95
08AA1F6 12.700 9.50 25.40 35.20 1.50 7.90 5.00
08AA1F7 12.700 18.00 37.00 52.00 1.50 8.00 5.20
*C08AA1F1 12.700 10.00 25.40 33.40 1.50 9.10 3.40
08BA1F2 12.700 11.40 38.60 49.60 1.60 8.90 3.50
08BA1F6 12.700 18.00 25.80 37.80 1.60 8.00 4.20
08BA1F8 12.700 11.20 21.85 32.85 2.50 8.90 4.30
08BA1F11 12.700 11.00 25.40 36.40 1.60 8.90 4.30
08BA1F16 12.700 12.30 27.80 42.80 1.60 21.00 5.20
08BA1F18 12.700 9.50 28.30 37.00 1.60 8.00 4.30
08BA1F20 12.700 12.60 22.95 33.95 1.60 10.2 5.00
08AK1F2 12.700 9.50 25.40 35.20 1.50 7.90 4.85
08AK1F4 12.700 9.50 25.39 35.19 1.50 7.90 5.50
08BK1F5 12.700 9.50 29.00 38.70 1.60 7.10 4.50
08BK1F7 12.700 9.50 29.00 39.00 1.60 7.00 4.50
08BK1F9 12.700 9.50 25.40 36.40 1.60 8.90 M4
08BK1F10 12.700 11.00 27.77 38.77 1.55 8.75 4.30
08BK1F14 12.700 11.00 25.57 36.57 1.60 8.90 6.50
08BK1F15 12.700 17.90 27.60 39.60 1.60 8.00 7.10
08BF30 12.700 18.00 27.20 40.00 1.60 8.00 4.30
08BF33 12.700 9.50 27.74 38.80 1.60 8.50 3.10
10AK1F3 15.875 14.29 31.75 46.20 2.03 10.30 5.50
10AK1F5 15.875 20.00 39.00 50.10 2.03 12.50 M5
10AK1F7 15.875 12.70 31.80 46.20 2.03 10.30 M6
10AK1F8 15.875 12.70 31.80 46.20 2.03 10.30 6.50
10AK1F9 15.875 20.00 38.97 50.07 2.03 12.50 5.50
10AHK1F1 15.875 12.70 34.00 48.40 2.42 10.30 M5
10BK1F2 15.875 13.00 32.40 45.20 1.70 11.00 6.00
12AA1F7 19.050 15.90 38.10 55.50 2.42 11.90 6.00
12AK1F1 19.050 15190 40.00 55.60 2.42 11.90 6.20
12AK1F4 19.050 15.90 38.10 55.50 2.42 11.90 M5
12AK1F7 19.050 15.90 38.10 55.60 2.42 11.90 6.00
12AK1F8 19.050 15.90 4.0 55.60 2.42 11.90 6.80
12BA1F1 19.050 16.00 38.10 52.40 1.85 13.46 8.20
12BA1F12 19.050 18.00 35.20 52.70 1.85 12.20 6.40
12BK1F4 19.050 16.00 38.10 52.40 1.85 13.46 6.40
12BK1F5 19.050 18.00 35.44 54.05 1.80 11.60 6.40
12BK1F6 19.050 16.00 35.00 52.40 1.85 13.46 6.40
12BK1F8 19.050 18.00 35.20 50.40 1.85 12.20 6.40
12BK1F9 19.050 16.00 24.80 39.00 1.85 13.46 6.40
12BK1F10 19.050 20.50 40.00 54.50 1.85 12.0 8.50
12BK1F11 19.050 16.00 38.15 52.55 1.85 13.46 10.00
12BFK1 19.050 16.50 40.00 54.80 1.85 12.00 6.60
16AA1F4 25.400 19.10 50.80 64.80 3.25 15.90 6.00
16AK1F3 25.400 30.00 56.30 82.40 3.25 16.00 6.50
16AK1F5 25.400 25.40 44.00 56.00 3.25 15.90 6.00
16AK1F6 25.400 24.00 44.00 56.00 3.25 15.90 6.00
16BK1F3 25.400 19.10 50.80 72.60 3.10 15.88 8.20
16BK1F4 25.400 36.00 54.00 78.60 3.10 16.00 8.20
16BK1F5 25.400 25.00 57.80 83.60 3.10 19.00 9.00
16BK1F10 25.400 24.00 53.58 77.58 3.00 16.30 8.20
16BK1F11 25.400 26.00 58.00 74.60 4.00 18.00 9.00
16BK1F13 25.400 25.00 58.00 84.40 3.10 18.00 9.00
16BK1F15 25.400 25.00 68.00 130.00 3.10 17.00. 9.10
16BK1F16 25.400 23.80 58.00 83.80 1.85 17.00 8.40
16BK1F17 25.400 25.00 50.80 70.20 4.15 20.20 9.10
16BK1F19 25.400 24.00 57.15 75.00 4.15 18.00 9.00
20AK1F2 31.750 25.40 53125 77.15 6.00 19.84 8.20
20AK1F3 31.750 25.40 63.50 87.30 4.00 19.80 8.70
20ANK1F1 31.750 25.40 61.08 87.675 4.80 19.81 10.30
20BK1F2 31.750 26.00 68.00 88.00 4.50 23.50 9.60
24AA1F1 38.100 28.60 76.20 111.60 4.80 23.80 9.80
链条附件参数
